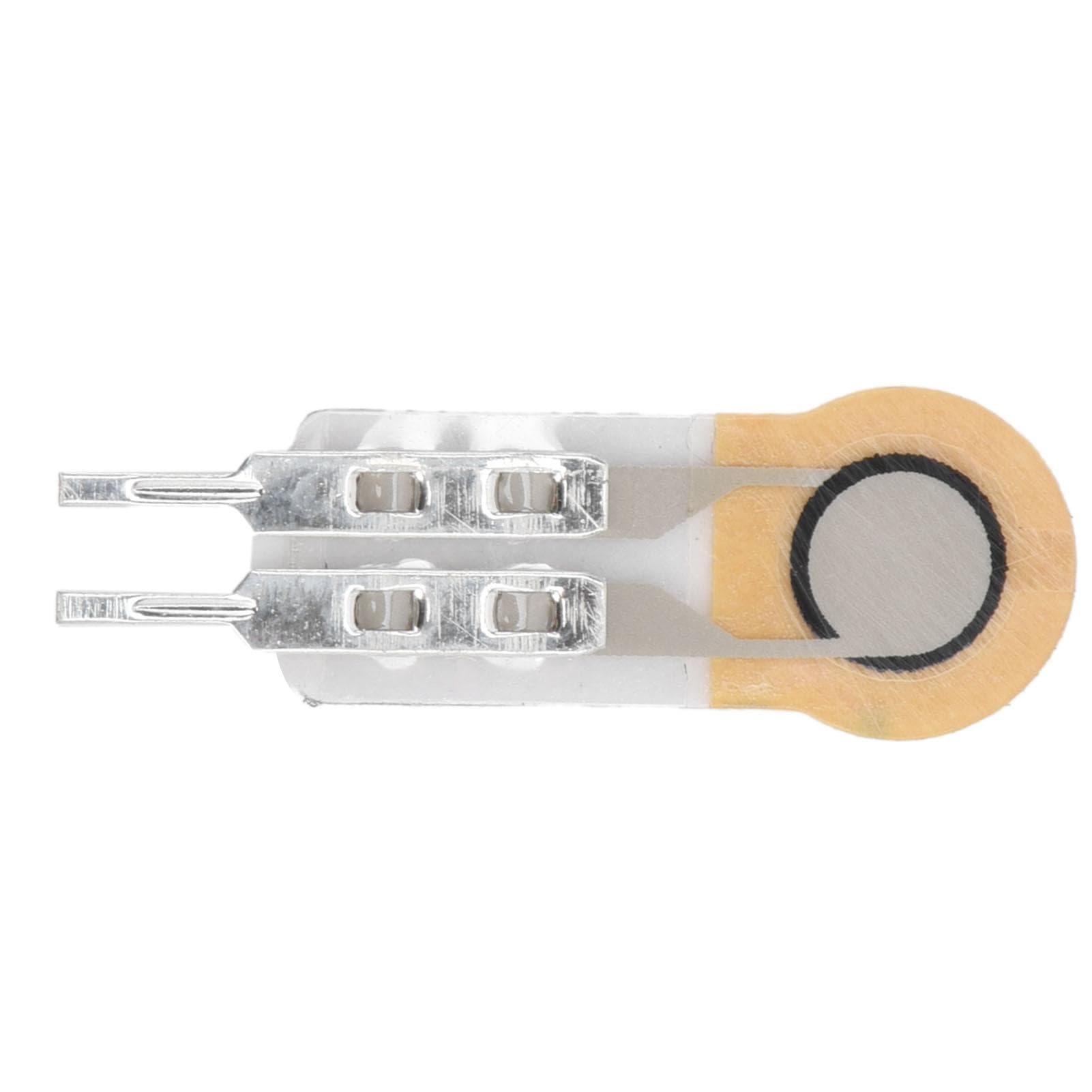

Thin Film Pressure Sensor High Precise Flexible Force Sensing Resistor 10g~5Kg RPC7 6STGCS

About this item

• Feature: 1. RP?C7.6ST?GCS resistive thin film pressure sensor with excellent flexibility and stability. 2. Composed of polyester film with excellent performance, highly conductive materials, graphene pressure sensitive materials and bonding materials. 3. The output interface is made of wear resistant material, which is conducive to the contact of metal shrapnel or thimble, and it can also be directly soldered. 4. The thin film pressure sensor has excellent force sensitivity, and has a quick response speed and strong practicability. 5. With a pressure range of 10g?5Kg, it can withstand multiple flexible presses and has a long service life. Specification: Item Type: Thin Film Pressure Sensor Thickness: Approx. 0.25mm 0.01in, with adhesive Style: Flake Trigger Force: 510g Pressure Range: 10g~5kg When Triggering Force: Resistance<200K Ohm At 20kg Force: Resistance <0.1K Ohm Pressure Action Mode: Contact Pressing Resistance When Not Triggered: Greater than 20M Ohm Activation Time: Less than 0.01s Operating Temperature: 40 celsius ~+85 celsius Durability: More than 1 million times (Flexible pressing with 1Kg force) Resistance Range: 0.1K200K Ohm Response Time: <1ms Whether Waterproof: No Whether Dustproof: No Electromagnetic Interference EMI: No Electrostatic Discharge EDS: No RoHS Compliant: Yes. Package List: 1 x Thin Film Pressure SensorRP?C7.6ST?GCS resistive thin film pressure sensor with excellent flexibility and stability. Composed of polyester film with excellent performance, highly conductive materials, graphene pressure sensitive materials and bonding materials. The output interface is made of wear resistant material, which is conducive to the contact of metal shrapnel or thimble, and it can also be directly soldered. The thin film pressure sensor has excellent force sensitivity, and has a quick response speed and strong practicability. With a pressure range of 10g?5Kg, it can withstand multiple flexible presses and has a long service life.
