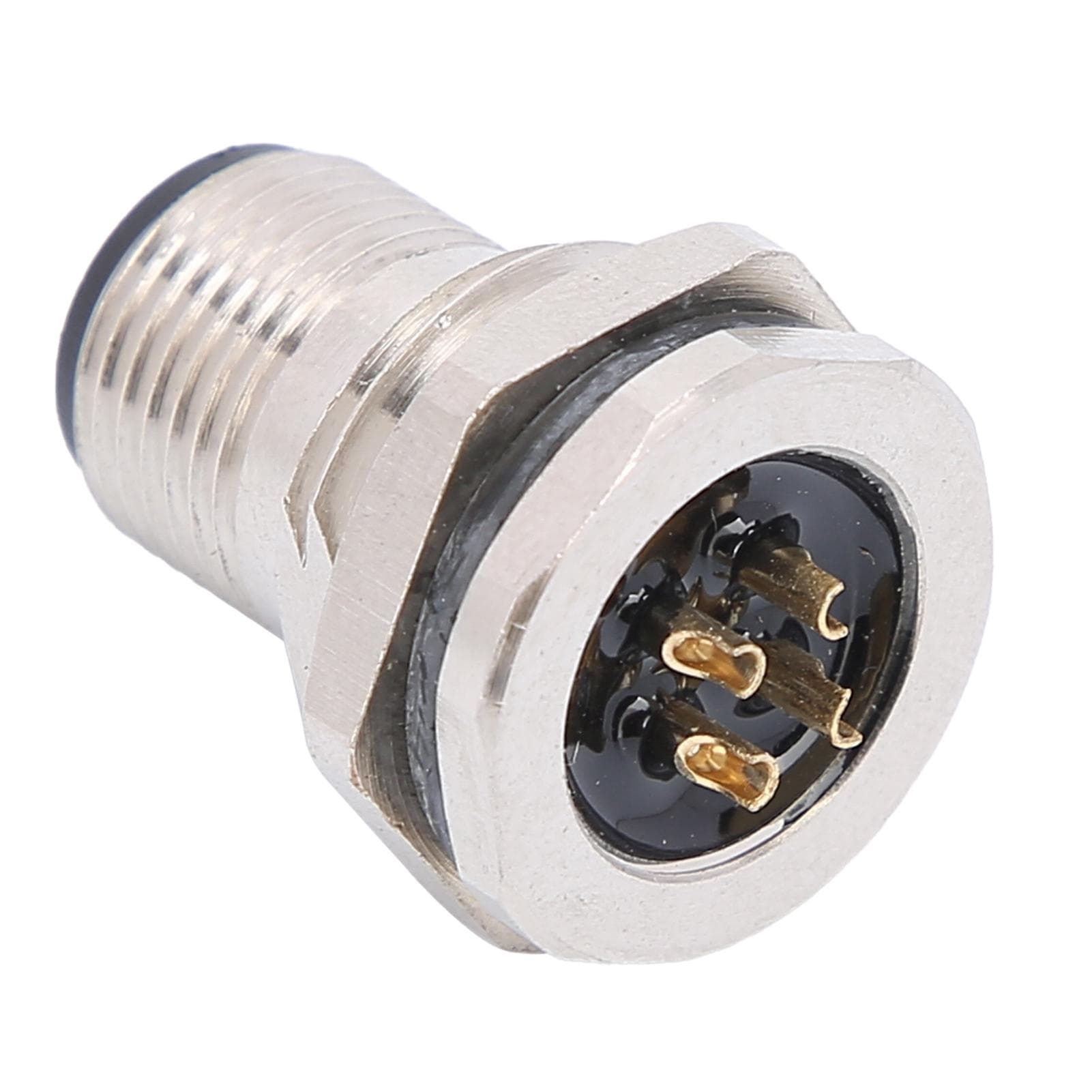

Waterproof Socket 4Pin Panel Back Mounting Waterproof Connector Electrical Supplies M12FP4

About this item

• Feature: 1. The shell and the pins are made of brass, which has good conductivity, and the epoxy resin sealing material can ensure good waterproof performance. 2. The metal shell connector has an excellent 360 degrees full shielding, and the damping design has a noise reduction effect to make it run stably. 3. Waterproof grade IP67, provide safe and reliable connection in harsh environment, can be used indoors and outdoors. 4. With standard M12 thread and hole size, the connection is tight and seamless, safe and reliable. 5. The product complies with IEC 61076?2?101 Industry 4.0 protocol and NEMA2000 standard. Specification: Item Type: Waterproof Socket Shell Material: Brass nickel plated Sealing Material: Epoxy resin Pin Material: Brass goldplated Rubber Core Material: PA+GFTPU Molding Material: TPUPVC Rated Current: 4A Rated Voltage: ACDC250V Conductor Specifications: AWG22, 0.34mm2 Contact Impedance: less than 5m Ohm Insertion Times: more than 500 times Number of Cores: 4 Executive Standard: IEC610762101 Applicable Temperature: 25 celsius ~+80 celsius Waterproof Rating: IP67 Hole Size:Approx. 16.1 x 13.5mm 0.6 x 0.5in. Package List: 1 x Waterproof SocketThe shell and the pins are made of brass, which has good conductivity, and the epoxy resin sealing material can ensure good waterproof performance. The metal shell connector has an excellent 360 degrees full shielding, and the damping design has a noise reduction effect to make it run stably. Waterproof grade IP67, provide safe and reliable connection in harsh environment, can be used indoors and outdoors. With standard M12 thread and hole size, the connection is tight and seamless, safe and reliable. The product complies with IEC 61076?2?101 Industry 4.0 protocol and NEMA2000 standard.
