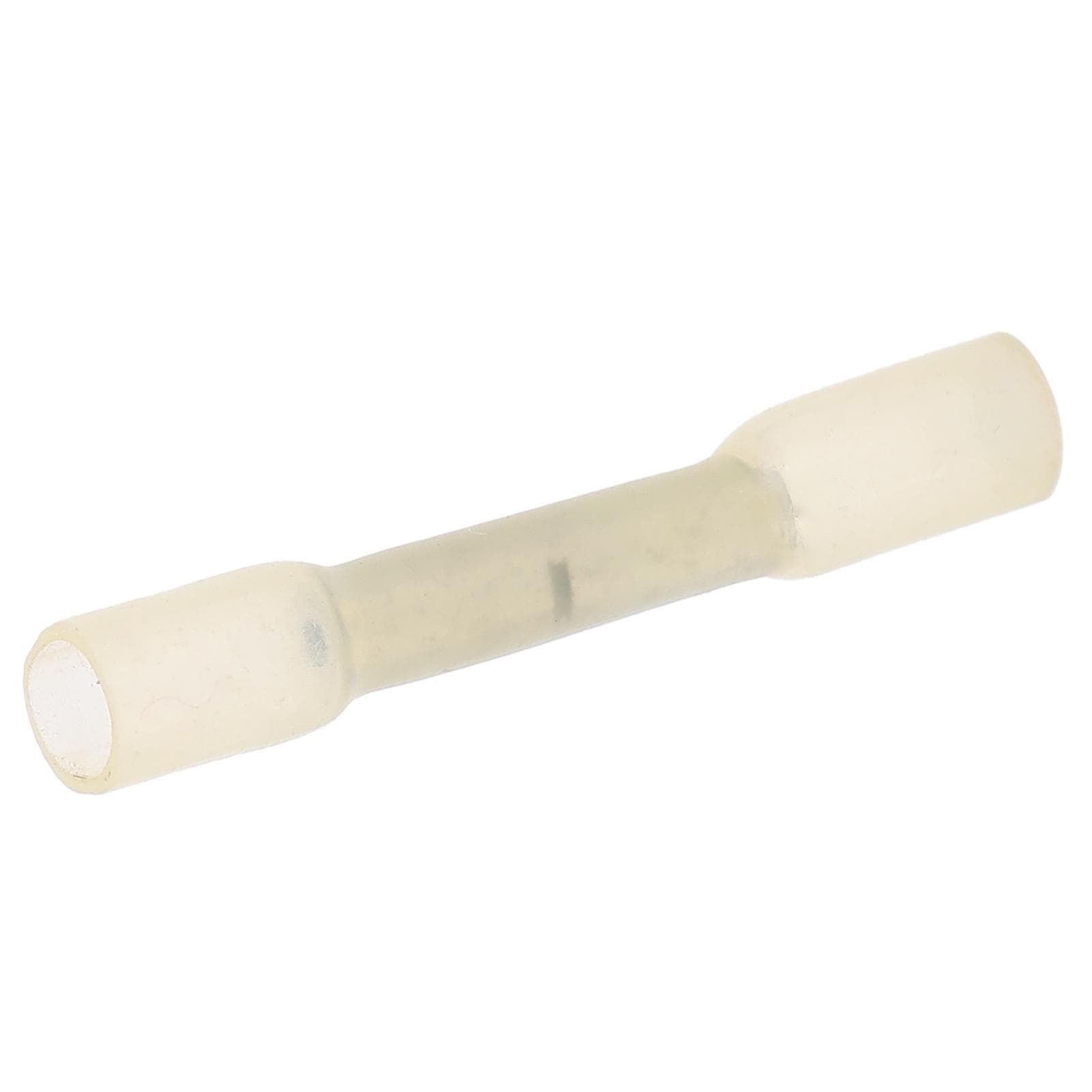

50Pcs Heat Shrink Terminals Butt Connectors Kit Waterproof Electrical Wire Crimp SpliceBHT0.5

About this item

• Feature: 1. Convenient design, one plug and one pressure to realize easy one docking, long?term peace of mind 2. The raised parts on both sides can be remembered in millimeters, and the overall trend is linear, adapting to more narrow spaces 3. The material is made of heat?shrinkable material, and the wires are tightly wrapped after high temperature shrinkage, which is waterproof and moisture?proof 4. There is a partition in the middle of the terminal, so that the copper wires entering at both ends have the same length 5. The thick copper tube ensures firm and safe crimping every time, providing the smallest voltage drop, high current flow, and less heat Specification: Item Type: Heat Shrink Terminals Material: Nylon, copper Purpose: These connectors can be used for wiring projects of your car, boat, home, trailer, RV or motorcycle Model Color Upper limit of current Wire range Size(approx.) AWG mm2 L D d BHT5.5 Yellow 48A 1210 46 42mm 1.7in 6.93mm 0.27in 3.6mm 0.14in BHT2 Blue 27A 1614 1.52.5 37.3mm 1.5in 5.67mm 0.22in 2.4mm 0.09in BHT1.25 Red 19A 2216 0.51.5 37.3mm 1.6in 4.75mm 0.19in 1.7mm 0.07in BHT0.5 Yellow 9A 2022 0.30.5 26.5mm 1in 3.3mm 0.1in 1mm 0.04in Operating Temperature: 55 celsius 125 celsius Start Shrinking Temperature: 80 celsius Full Shrinkage Temperature: 130 celsius How to Use: 1. Strip about 10mm of the wire sheath 2. Insert the wire into the terminal 3. Clamp it with pliers 4. Heat and shrink the heat shrinkable tube . Package List: 50 x Heat Shrink TerminalsConvenient design, one plug and one pressure to realize easy one docking, long?term peace of mind The raised parts on both sides can be remembered in millimeters, and the overall trend is linear, adapting to more narrow spaces The material is made of heat?shrinkable material, and the wires are tightly wrapped after high temperature shrinkage, which is waterproof and moisture?proof There is a partition in the middle of the terminal, so that the copper wires entering at both ends have the same length The thick copper tube ensures firm and safe crimping every time, providing the smallest voltage drop, high current flow, and less heat
