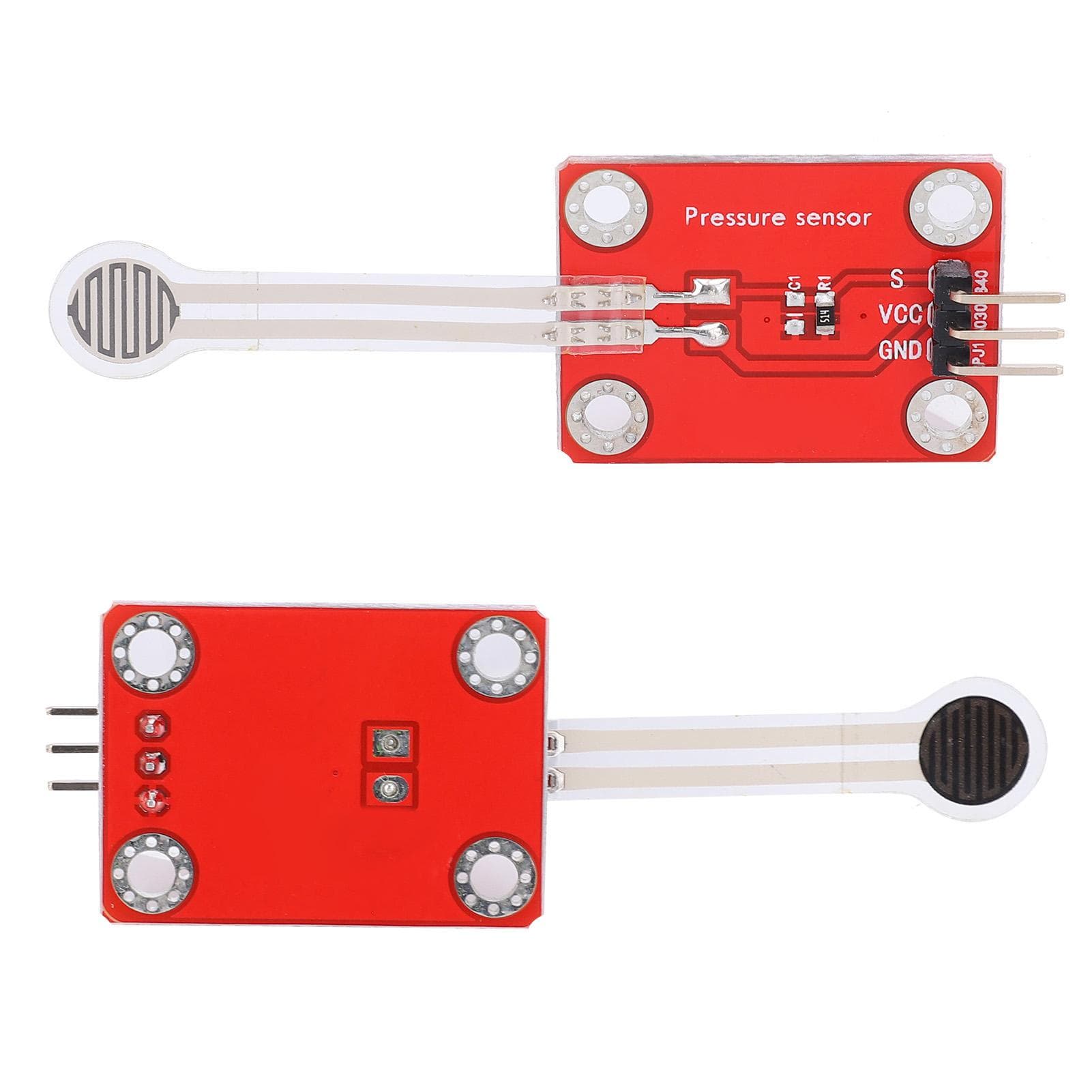

Pressure Sensor Module Thin Film DIY Test PCB Board Compatible with for Micro:bit DC 3.3~5V
Vestidos|SKU 1010210037811vdfdswv
About this item
- Feature: 1. The thin film pressure sensor is an ultrathin film based on a new type of nano pressuresensitive material supplemented by a comfortable Young s modulus 2. The substrate is made by onetime patching, which has the dual functions of waterproof and pressure sensitive 3. When the sensor senses external pressure, the sensor resistance value changes 4. A circuit is used to convert the pressure signal sensed by the sensor into an electrical signal with a corresponding change in strength for output. In this way, the pressure change can be obtained by detecting the change of the electrical signal 5. This product is compact in structure and easy to use, suitable for beginners to learn programming, and can also be used in more complex systems Specification: Item Type: Pressure Sensor Module Material: PCB Purpose: DIY test, study, measurement Working Voltage: DC 3.3~5V Range: 00.5KG Thickness: <0.25mm Response Point: <20g Repeatability: <+5.8percent (50percent load) Accuracy: +2.5percent (85percent range interval) Durability: > 1 Million times Initial Resistance: Greater than 100M Ohm (no load) Response Time: <1ms Recovery Time: <15ms Working Temperature: 20 celsius ~60 celsius . Package List: 1 x Pressure Sensor ModuleThe thin film pressure sensor is an ultrathin film based on a new type of nano pressuresensitive material supplemented by a comfortable Young s modulus The substrate is made by onetime patching, which has the dual functions of waterproof and pressure sensitive When the sensor senses external pressure, the sensor resistance value changes A circuit is used to convert the pressure signal sensed by the sensor into an electrical signal with a corresponding change in strength for output. In this way, the pressure change can be obtained by detecting the change of the electrical signal This product is compact in structure and easy to use, suitable for beginners to learn programming, and can also be used in more complex systems
