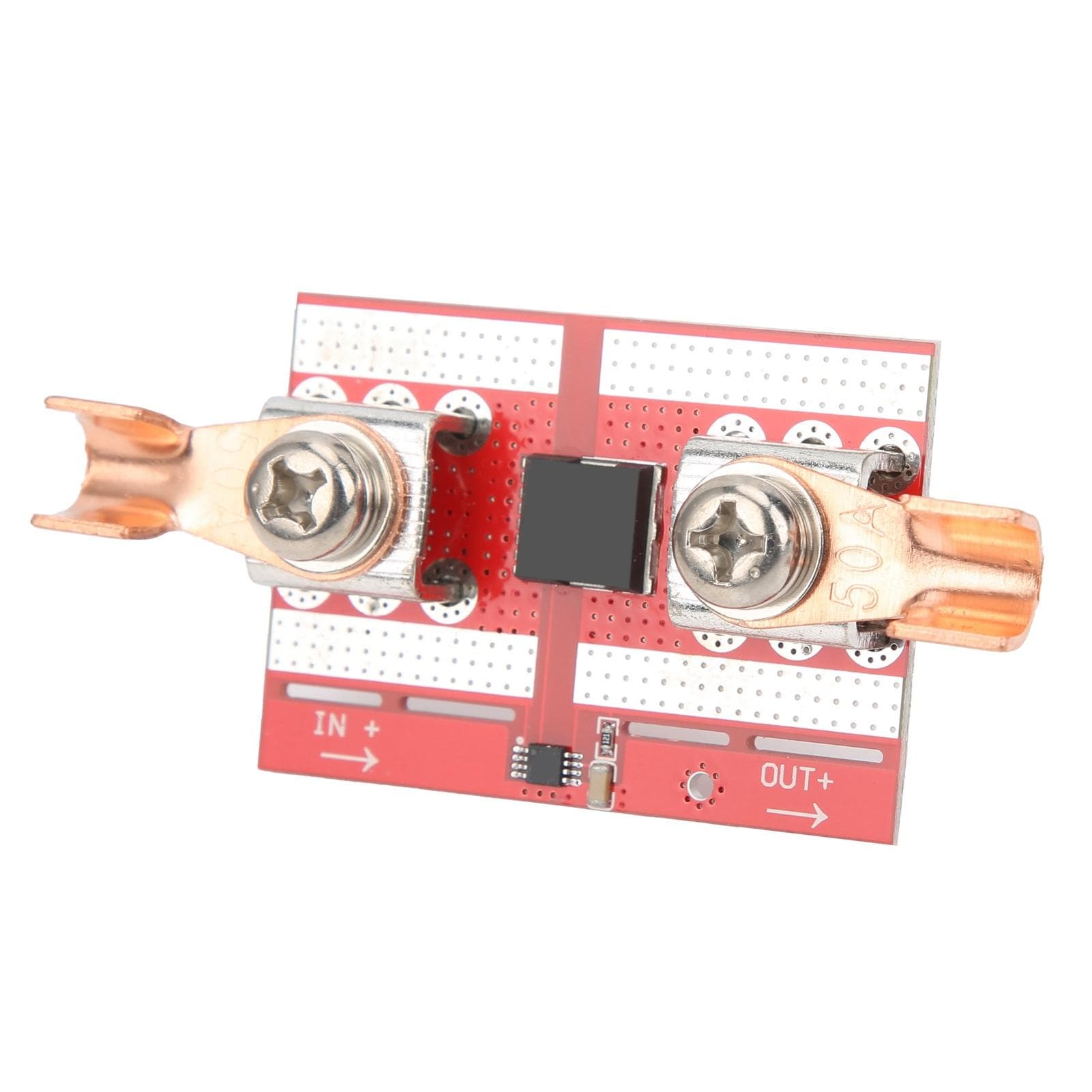

50A High Current Diode Solar Charging Anti Backflow Protection Board Positive Low Resistance

About this item

• Feature: 1. Provide a lower loss way, in high?power applications, offers a high?efficiency solution, reduce the need for heat dissipation, saving circuit board space. 2. The input and output are equivalent to diodes. When the output voltage is detected to be greater than the input, the output will be turned off. The detection value is in the millivolt level, and the response speed is fast. 3. Adopt an N?channel MOSFET to replace a diode to reduce power consumption. Use ultra?strong high current low ESR MOS tube, 300A, 1.5 milliohms. 4. It is an ideal choice to replace ordinary high?current diodes and solar panels in parallel, and is suitable for charging reverse irrigation protection. 5. Manufactured according to the original production specifications, in line with strict quality standards. Specification: Item Type: Diode Material: Brass Working Voltage: 970V Working Current: Maximum working current 50A Circuit Board Size: Approx. 38 x 54mm1.5 x 2.1in Copper Foil Thickness: 1.5oz Purpose: Replace ordinary highcurrent diodes, ideal for parallel connection of solar panels, suitable for charging antibackflow protection How to Use: 1. Unscrew the screws before wiring 2. According to the signs on the board, positive input and positive output 3. Wrap the wire in the middle of the screw gasket and tighten the screw 4. Or use clips to directly clamp the copper sheet . Package List: 1 x DiodeProvide a lower loss way, in high?power applications, offers a high?efficiency solution, reduce the need for heat dissipation, saving circuit board space. The input and output are equivalent to diodes. When the output voltage is detected to be greater than the input, the output will be turned off. The detection value is in the millivolt level, and the response speed is fast. Adopt an N?channel MOSFET to replace a diode to reduce power consumption. Use ultra?strong high current low ESR MOS tube, 300A, 1.5 milliohms. It is an ideal choice to replace ordinary high?current diodes and solar panels in parallel, and is suitable for charging reverse irrigation protection. Manufactured according to the original production specifications, in line with strict quality standards.
