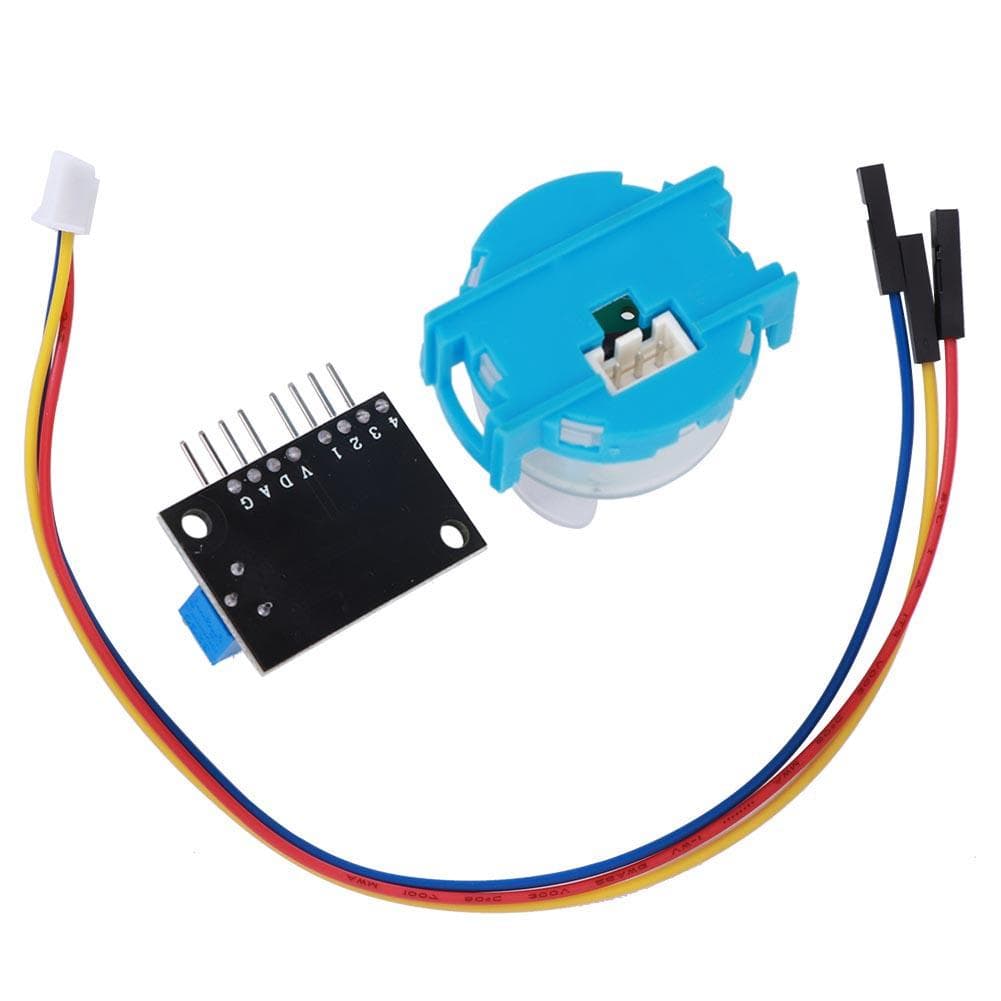

Turbidity Sensor Module Accuracy Liquid Sewage Water Quality Detection Set TS?300B

About this item

• Feature: 1. Easy to use and high measurement accuracy, can be used to measure the degree of water pollution of washing machines, dishwashers and other products 2. Can be used for industrial on?site control, environmental sewage collection and other requiring turbidity detection and control 3. Judge whether the turbidity of water exceeds the standard, so as to give early warning or linkage to other equipment 4. The turbidity sensor module converts the current signal output by the sensor into a voltage signal, and performs AD conversion data processing through the single‑chip microcomputer. 5. Small size, easy to carry and store, convenient to use and with good performance Specification: Item Type: Turbidity Sensor ModuleMaterial: Synthetic cardboard Working Voltage: 5.00V DC Working Current: 40MA (maximum) Response Time: <500MS Insulation Resistance: 100M Ohm (minimum) Output Mode: Digital output Analog Output: 0~4.5V Digital Output: Highlow level signal (you can select the corresponding national value by adjusting the potentiometer) Operating Temperature: 20 celsius ~90 celsius Sensor Interface: XH2.54 Product Description: Water turbidity refers to the degree of turbidity caused by suspended substances such as sand, clay, organic matter, plankton and microorganisms in the water. Industrialgrade turbidity sensors or turbidity meters are expensive, and the cost is too high in the designed of electronic products to be suitable for selection; therefore, we chose a turbidity sensor that is widely used in household appliances, washing machines and dishwashers. The sensor uses optical principles to comprehensively judge the turbidity condition through the light transmittance and scattering rate in the solution. Inside the sensor is an infrared pair tube. When light passes through a certain amount of water, the amount of light transmitted depends on the degree of pollution of the water. The more dirty the water, the less light is transmitted. The light receiving end converts the power of the transmitted light into a corresponding current. If the transmitted light is more, the current is large. On the contrary, the transmitted light is less and the current is small.Features: The turbidity sensor module converts the current signal output by the sensor into a voltage signal, and performs AD conversion data processing through the singlechip microcomputer. The modified module has analog and digital output interfaces. The analog quantity can be sampled and processed by the AD converter of the singlechip microcomputer to get the current water turbidity. The digital quantity can be adjusted by the potentiometer on the module to adjust the trigger threshold. When the turbidity reaches the set threshold, the D1 indicator will be lit, the sensor module output will change from high to low, and the microcontroller monitors the level change , To determine whether the turbidity of the water exceeds the standard, so as to warn or link other equipment. This module is costeffective, easy to use, and has high measurement accuracy. It can be used to measure the water turbidity of washing machines, dishwashers and other products; it can also be used in industrial site control environmental sewage collection and other that require turbidity detection and control. Package List: 1 x Module 1 x Sensor Connector 1 x Cable Note: 1. The top of the turbidity sensor is not waterproof. It is forbidden to throw the turbidity sensor completely into the water during use. The water surface cannot pass the connection between the top cover and the shell. Water in the sensor will cause the sensor to burn out.2. The wavelength range of light received by the photodiode of the sensor is (500~1050NM). The wavelength of sunlight or fluorescent light will affect the reception of the photoresistor of the sensor and affect the measurement output. Direct sunlight or light will increase the measurement error of the sensor. Avoid direct sunlight or light when using the sensor.3. The sensor head housing should be kept cleaning to avoid inaccurate measurement caused by contamination.Easy to use and high measurement accuracy, can be used to measure the degree of water pollution of washing machines, dishwashers and other products Can be used for industrial on?site control, environmental sewage collection and other requiring turbidity detection and control Judge whether the turbidity of water exceeds the standard, so as to give early warning or linkage to other equipment The turbidity sensor module converts the current signal output by the sensor into a voltage signal, and performs AD conversion data processing through the single‑chip microcomputer. Small size, easy to carry and store, convenient to use and with good performance
