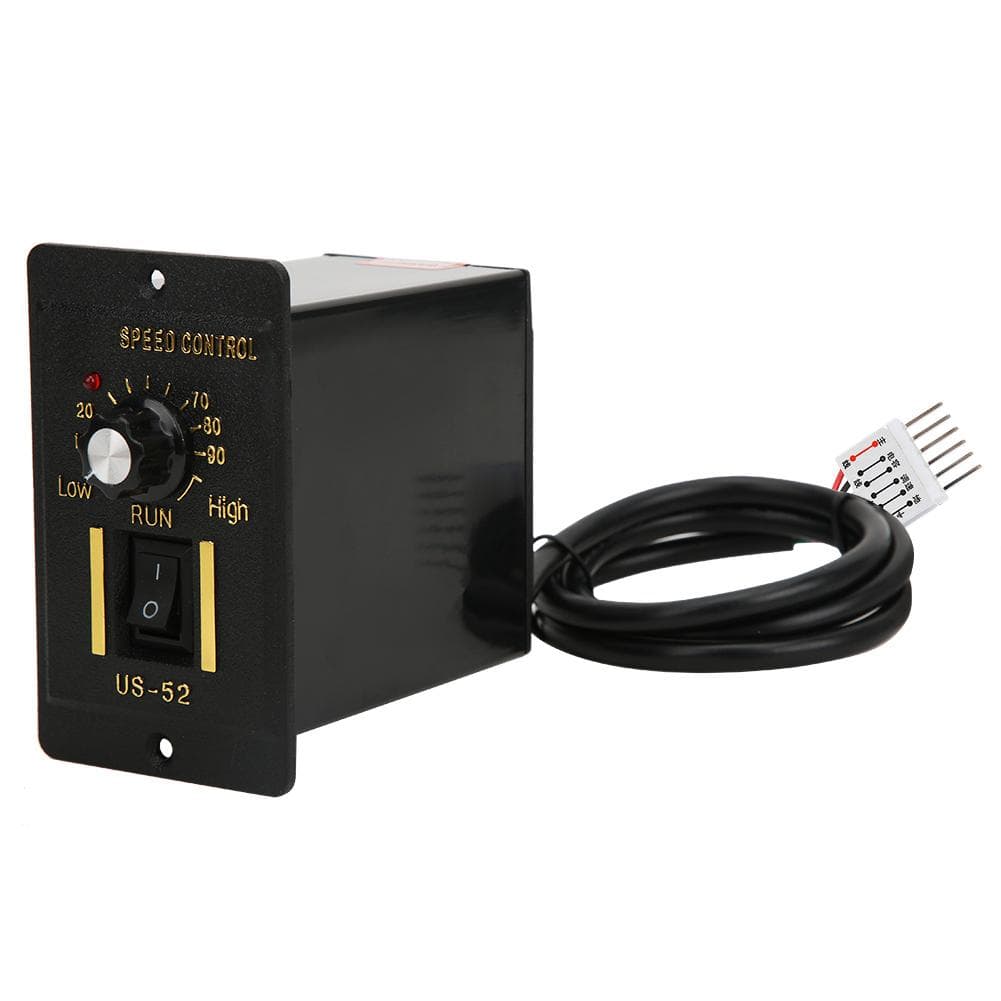

BERM Motor Speed Controller CWCCW 3.96 Interface AC220V 5060Hz 180W200W250W200W

About this item

• Feature: 1. The speed controller can rotate CWCCW. The connection between COM and CW is the forward rotation, and the connection between COM and CCW is the reverse rotation. 2. Single row 6pin male connector, interface 3.96, easy to connect 3. With potentiometer thread knob, easy to rotate, support stepless speed regulation 4. 80cm cable length, can operate for long operating distance 5. ABS plastic shell material, matte panel, dropresistant and scratchresistant, durable to use. 6. It is widely used in packaging, printing, food, electronics, instrumentation and clothing industry production lines as speedregulating drive devices Specification: Item Type: Speed ControllerBrand: BERMModel: US52 Working Voltage: AC220V 5060HZ (voltage fluctuation range is +10percent Ue) Matching Motor Power: 180W 200W 250W (optional) Operating Environment: 10 ~ +50 celsius Relative Humidity: Less than 90percent Speed range: 901400rmin 50HZ, 901700rmin 60HZ Explanation: The governor has 6 wires, the black wire is the main motor wire, the red and white are the capacitor auxiliary wires, the 2pcs blue wire are the speed feedback wires, and the green wire is the ground wire. Instructions: 1. Turn off the power, connect it according to the wiring diagram and confirm that the wiring is correct, do not modify it arbitrarily 2. Fix the controller and adjust the speed to the lowest 0 to avoid the instantaneous high current when starting the power supply, causing permanent damage. 3. Then turn on the power again and adjust the speed knob to the desired position. Turn off the power when not needed; 4. When the governor is connected to the motor, if you find that the torsion or speed does not meet the requirements, please adjust the trimmer potentiometer on the side of the product (speed setting adjustment) 5. If you want to change the running direction of the motor, just change the CCW and CW jumpers on the terminal block on the back of the controller. Select COM and CW short circuit, then the motor will rotate CW Select COM and CCW short circuit, then the motor will rotate CCW (When changing the direction, wait for the motor to stop completely before changing.) 6. The action switch only controls the movement or stop of the motor. It is not used for power interruption. Please turn off the power if it is not used for a long time. Application: It is widely used in packaging, printing, food, electronics, instrumentation and clothing industry production lines as speedregulating drive devices.. Package List: 1 x Speed ControllerThe speed controller can rotate CWCCW. The connection between COM and CW is the forward rotation, and the connection between COM and CCW is the reverse rotation. Single row 6pin male connector, interface 3.96, easy to connect With potentiometer thread knob, easy to rotate, support stepless speed regulation 80cm cable length, can operate for long operating distance ABS plastic shell material, matte panel, dropresistant and scratchresistant, durable to use.
