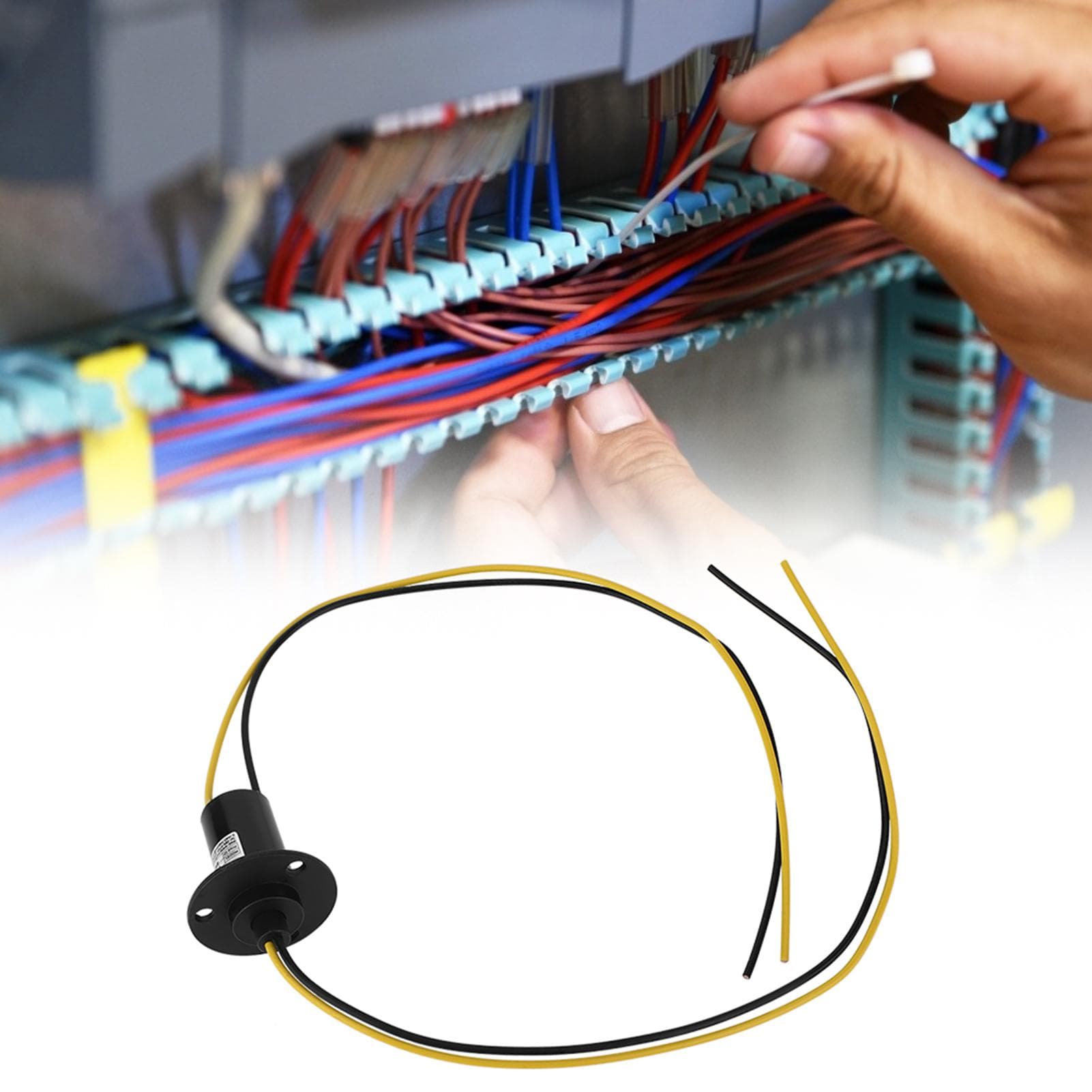

Conductive Current Collector Ring High Power Equipment Parts for IP51 Protection

About this item

• Feature: 1. The working life to slip ring is of 10 million revolutions, which has the ability to support IP51 protection level. 2. Easy to use, with high performance, such collector ring is with contact material of precious metal. 3. Supporting high power, the high power equipment accessory is with high performance. 4. Entitled with pratical adoptability, its high quality can keep its high performance for a long time. 5. Imported engineering plastics are hard?wearing, pressure?resistant, heat?resistant, corrosion?resistant and anti?aging. Specification: Item Type: Slip ring Technical Pattern Model: MW1215 Number of Rings: 2 Rated Current Per Ring (A): 15 Outer Diameter (mm in ): Approx. 22mm 0.87in Length (mm in): Approx. 45mm 1.77in Mechanical Technical Indicators Working Life: 10 million revolutions Rated Rate: 150RPM Working Temperature: 30 celsius ~ 80 celsius Operating Humidity: 0 ~ 85percent RH Contact Material: Precious metal Housing Material: PBT Moment of Rotation: 0.1N m; + 0.03Nm 6 channels Protection Level: IP51 Rated Voltage: 0 ~ 600VAC VDC Insulation Resistance: more than 1000MQ 500VDC Wire Pattern: 10A = AWG # 16; 20A = AWG # 14; 30A = AWG # 12; Wire Length: Standard Length: Approx. 300mm 11.81in (Adjusted as required) Insulation Strength: 500VAC at 50Hz, 60s Dynamic Resistance Change Value: <0.01Q. Package List: 1 x Slip Ring Note: The working life to slip ring is of 10 million revolutions, which has the ability to support IP51 protection level. Easy to use, with high performance, such collector ring is with contact material of precious metal. Supporting high power, the high power equipment accessory is with high performance. Entitled with pratical adoptability, its high quality can keep its high performance for a long time. Imported engineering plastics are hard?wearing, pressure?resistant, heat?resistant, corrosion?resistant and anti?aging.
