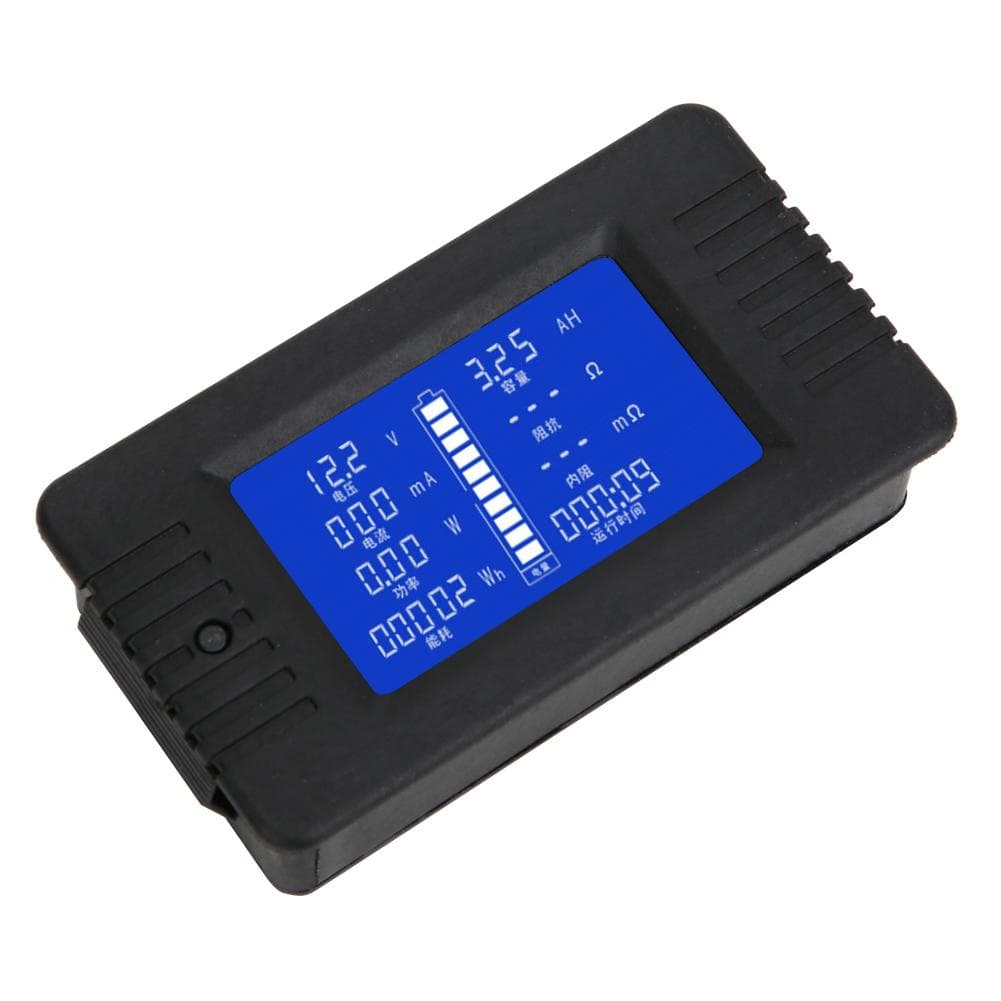

PZEM?015 Multifunctional Battery Meter Current Voltage Power Energy Capacity Impedance Tester

About this item

• Feature: 1. The battery tester is mainly used to measure the voltage, discharge current, discharge power, discharge impedance, internal resistance, capacity, remaining power, energy consumption, and running time of various types of batteries, and display measurement data through the LCD. 2. Highprecision chip control, good electronics, safe and reliable soldering process. 3. The shell is made of highstrength material, which is elastic and not easy to break. 4. The LCD screen gives you a better visual experience and easier reading. 5. 9 sets of measurement parameters can be displayed simultaneously, and various parameters are clearly visible. Specification: Condition: 100percent Brand New Item Type: Multifunctional Battery Meter 1. Voltage: Measuring Range: 0200V (<8V requires external power supply); Display Format: <10V display such as: 9.99V; <100V display such as: 99.9V; more than 100V display such as: 199V Minimum Resolution: 0.01V Starting Voltage: 0.05V Measurement Accuracy: 1percent 2. Current: Measuring Range: 0300A, Display Format: <1A display such as: 999mA; <10A display such as: 9.99A; <100A display such as: 199.9A; more than 100A, display such as: 199A 3. Power: Measuring Range: 060000W Display Format: <10W, display such as: 9.99W; <100W display such as: 99.9W; <1000W display such as: 99W; <10000W such as: 9.99KW; more than 10000W display such as: 19.9KW Minimum Resolution: 0.01W Starting Power: 0.2W Measurement Accuracy: 1percent 4. Impedance: Measuring Range: 01000 Ohm Display Format: <100 Ohm display such as: 99.9 Ohm ; more than 100 Ohm display such as: 999 Ohm is displayed when the overrange or current is 0. Minimum Resolution: 0.1 Ohm 5. Internal Resistance: Measuring Range: 0999m Ohm Display Format: Such as 999m Ohm , is displayed when the range or current is 0. Resolution: 1m Ohm Measurement Accuracy: 1percent 6. Capacity: Measuring Range: 01000AH Display Format: <1AH display such as: 999mAH; <10AH display such as: 9.99AH; <100AH, display such as: 99.9AH; <1000AH display such as: 999AH Minimum Resolution: 1mAH Measurement Accuracy: 1percent 7. Remaining Battery: Display: The remaining battery capacity is displayed by the battery symbol, a total of 10 grids, each grid represents 10percent of the electricity. The remaining battery capacity is calculated by the current battery voltage value. Before the test, the full power voltage and cutoff voltage should be preset according to the specifications of the battery used; the voltage per cell = (highest voltage minimum voltage) 10. 8. Energy Consumption: Measuring Range: 09999KWh, overflow to zero Minimum Resolution: 1Wh Measurement Accuracy: 1percent 9. Running Time: Range: 0999 Hours (no load is not counted) Format: 0:00:00999:59 (overflow to zero) 10. Power Consumption: Normal Working Status: 0.031.2W Sleep State: 0.5mW0.5W The power consumption is related to the value of the test voltage. The higher the voltage, the greater the power consumption. 11. Working Temperature: 20 degrees C + 60 degrees C Package List: 1 x Tester1 x Manual 1 Set of Wires Note: The default range of the product is 100A. If you use other ranges, you need to prepare your own diverter.The battery tester is mainly used to measure the voltage, discharge current, discharge power, discharge impedance, internal resistance, capacity, remaining power, energy consumption, and running time of various types of batteries, and display measurement Highprecision chip control, good electronics, safe and reliable soldering process. The shell is made of highstrength material, which is elastic and not easy to break. The LCD screen gives you a better visual experience and easier reading. 9 sets of measurement parameters can be displayed simultaneously, and various parameters are clearly visible.
