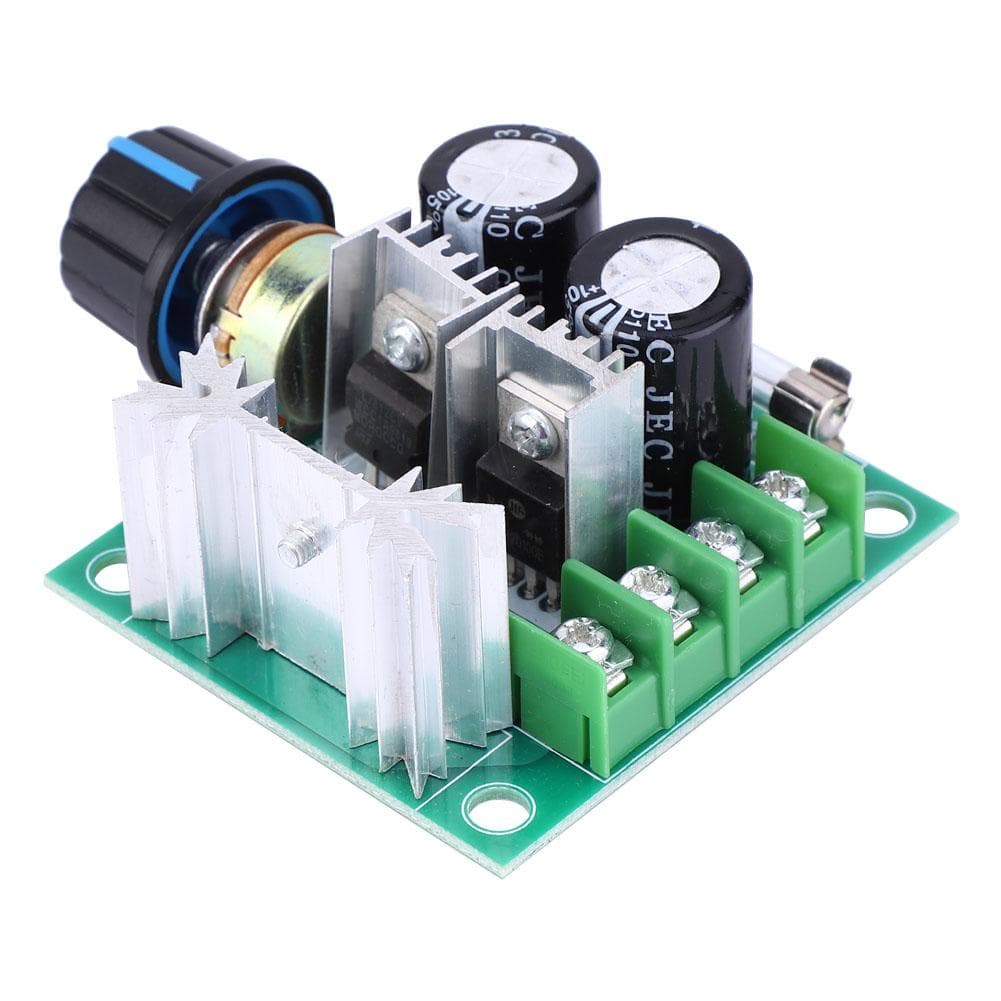

10A DC 12V 24V 36V 40V PWM DC Motor Speed Controller Governor Module Switch

About this item

• Feature: 1. The governor features advanced technology, high efficiency, large torque and small heat generation. 2. The circuit board uses high grade double sided PCB. 3. High quality 50V1000uF large capacitor, with obvious capacitance advantage compared to other 100220uF governor. 4. Power tube uses the IRF3205 highpower tube, never worry that the module cannot drive your motor. (Parameter drain current Id max: 82A; voltage Vds max: 75V; onstate resistance, Rds (on): 0.013 ohm). 5. The terminal adopts 8500 high current terminals, 300V 20A. Specification: Item Type: DC Motor Speed Controller Model: CCMHC Potentiometer: Resistance B100K Hole: 8mm Working Voltage: DC 12V40V Output Voltage: About 0100percent of the input voltage Control Power: 12V x 8A=96W, 24V x 8A=192W ... 40V x 8A = 320W Rated Current: 8A Maximum Current: 10A Speed Range: 10percent 100percent PWM Frequency: 13kHz Size: Approx 60x55x28mm 2.36x2.17x1.10in Weight: Approx 66g Package List: 1 x DC Motor Speed Controller1 x Gasket1 x Nut1 x Knob CapThe governor features advanced technology, high efficiency, large torque and small heat generation. The circuit board uses high grade double sided PCB. High quality 50V1000uF large capacitor, with obvious capacitance advantage compared to other 100220uF governor. Power tube uses the IRF3205 highpower tube, never worry that the module cannot drive your motor. (Parameter drain current Id max: 82A; voltage Vds max: 75V; onstate resistance, Rds (on): 0.013 ohm). The terminal adopts 8500 high current terminals, 300V 20A.
