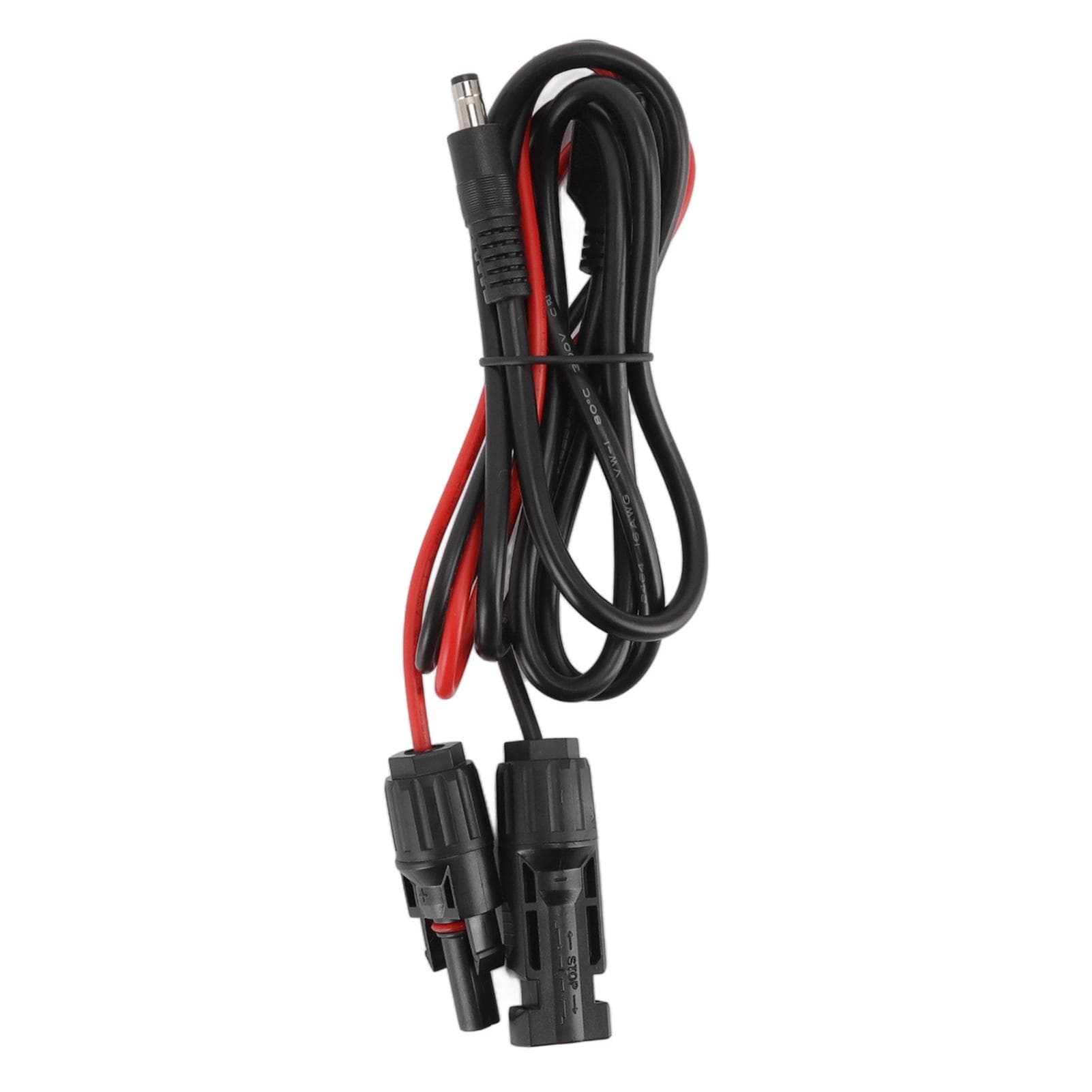

16AWG Solar Connector to DC 5.5mm Male Adapter Cable Copper Solar Panel Extension Cable

About this item

• Feature: 1. 16AWG: The cable is made of premium 16AWG copper wire, which is very thick and durable. The power loss can be minimized by using 16AWG large diameter cables. 2. Wire Specification: The main wire is in the model of 2464 16awg, 5.0mm OD, and 1.0m length; Branch line is in the model of 1015, 16awg, 3.1mm OD and 0.5m length. 3. Heat Resistant PVC Sheath: The cable adopts PVC sheath, which has best insulation effect, can withstand the high temperature up to 80 celsius . 4. Voltage and Current Parameters: Power is less than 156W. Less than 36V safety voltage, and the current is within 13A. 5. Applications: Solar connector to DC5.5mm extension cable is easy to use and install. It is applicable for most solar panel system, suitable for home, industry, etc. Specification: Item Type:Solar Extension Cable Model: to DC5521 male Sheath Material: PVC Core Material: Oxygen free copper Wire: 2464 16awg, OD: 5.0mm / 0.2in; 1015 16awg, OD: 3.1mm / 0.1in Specification: Main line 2464, 16awg 1.0m / 39.4in; Branch line 1015, 16awg 0.5m / 19.7in Number of Pin Cores: 2 cores Nominal Section: 1.31mm2 Standard Length: 1.5m / 59.1in Product Specification: 2x16AWG Temperature Resistance: 80 celsius Number of Shares: 42 Power: less than 156W Safety Voltage: less than 36V Current: less than 13A. Package List: 1 x Solar Connector to DC 5.5mm Male Adapter Cable
