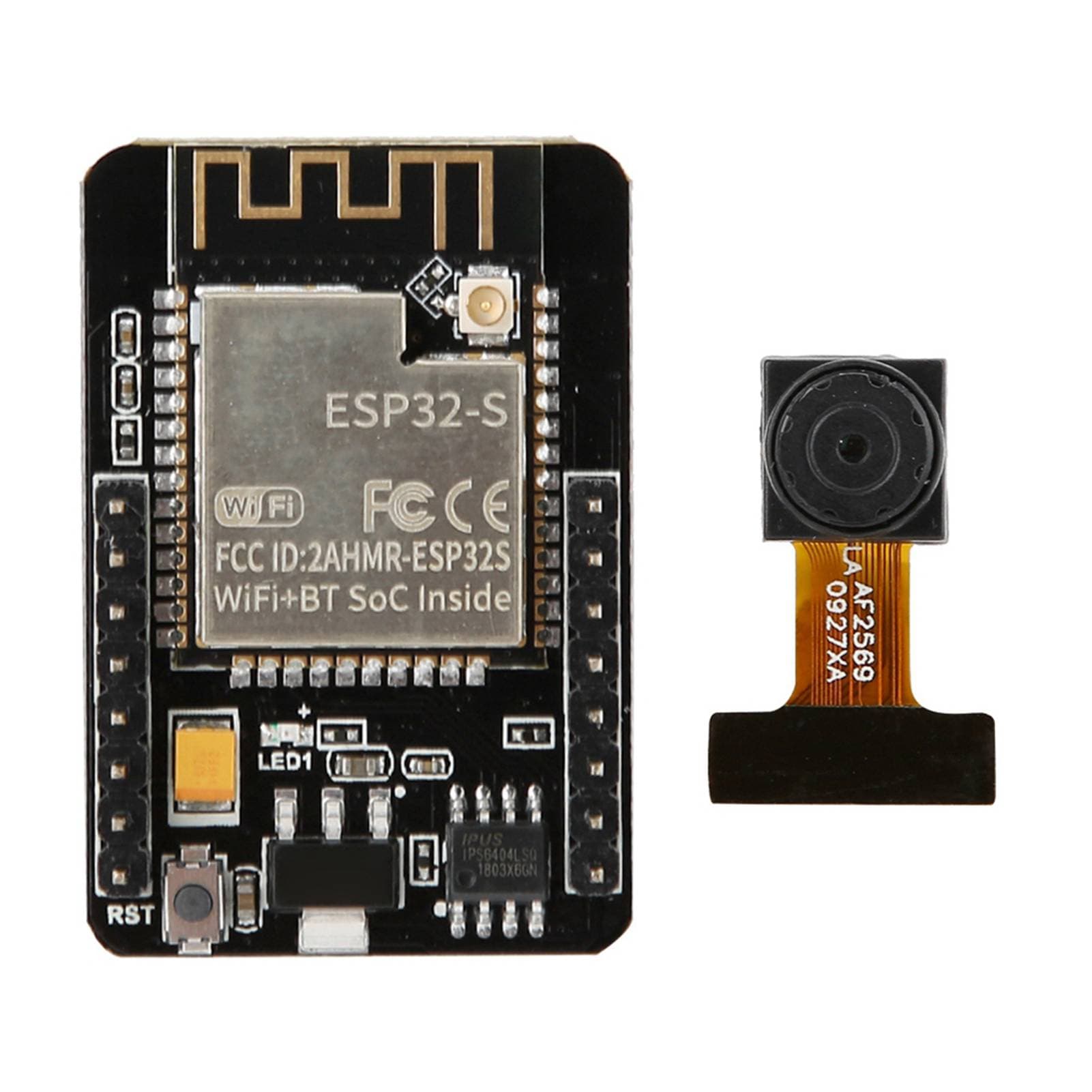

ESP32-CAM ESP32 5V WIFI Bluetooth Development Board OV2640 Camera Module

About this item

• Features: Using a on-board antenna, the module developed based on the ESP32 chip can work independently as a minimum system. (BLE Beacom), with two high-performance 32-bit LX6 CPUs, a 7-stage pipeline architecture with a frequency range of 80MHz to 240MHz. Totally compliant with WIFI 802.11b/g/n/e/i and Bluetooth 4.2 standards. Can build a separate network controller, or can be installed on other host MCUs to add networking capabilities to existing devices. ESP32-CAM can be widely used in various IoT applications, suitable for home smart devices, QR wireless identification, industrial wireless control, etc. Ultra-small 802.11b/g/n WIFI+BT/BLE SoC dual-mode board. Main frequency up to 240MHz, computing power up to 600 DMIPS. Built-in 520 KB, external 4M P. Supports interfaces such as UART/I2C/PWM/ADC/DAC. Support OV2640 and OV7670 cameras, built-in flash. Support picture WiFI upload, TF card, multiple sleep modes. Built-in Lwip and FreeRTOS to support secondary development. Support STA/AP/STA+AP working mode, Smart Config/AirKiss one-click distribution network. Specifications: Condition: Brand New Color: Shown as Picture Module model: ESP32-CAM Package: DIP-16 Size: 27*40.5*4.5(+/-0.2)mm Flash: 32Mbit by default RAM: Internal 520KB + External 4 M P Bluetooth: Bluetooth 4.2BR/EDR and BLE standards Wi-Fi: 802.11b/g/n/e/i Support interface: UART, I2C, PWM Support TF Card Maximum Support: 4G IO port: 9 Serial Port Rate: default 115200bps Image Output Format JPEG (only supported by OV2640), BMP, GRAYSCALE Spectrum range: 2412~2484MHz Antenna Form: onboard antenna, gain 2dBi Transmit Power: 802.11b: 17+/-2dBm (@11IMbps) 802.11g: 14+/-2dBm (@54Mbps) 802.11n: 13+/-2dBm (@mcs7) Receive Sensitivity: CCK, I Mbps: -90dBm CCK, 11 Mbps: -85dBm 6Mbps (l/2bpsk): -88dBm 54 Mbps (3/4 64-QAM): -70dBm MCS7 (65 Mbps, 72. 2 Mbps): -67dBm Power Consumption: Turn off the flash: 180mA@5V Turn on the flash and adjust the brightness to the maximum: 310mA@5V Deep--sleep: the lowest power consumption can reach 6mA@5V Moderm-sleep: up to 20ma@5V Light-sleep: up to 6.7mA@5V Security: WPA/WPA2/WPA2-Enterprise/WPS Power Supply: 5 V Working Temperature: -20 degrees C ~ 85 degrees C Storage Environment: -40 degrees C-90 degrees C, <90percent RH Package List: 1 * Camera Module
