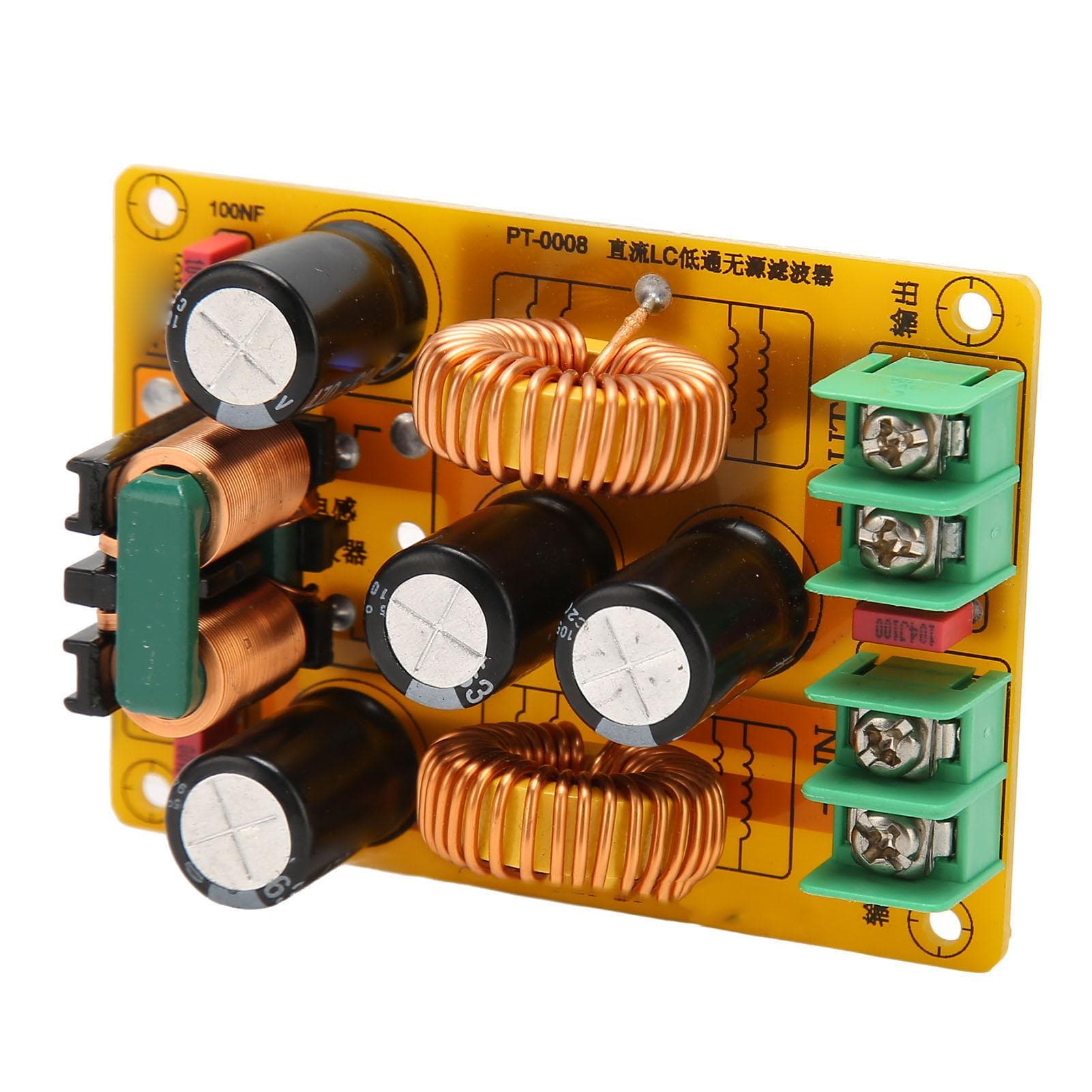

DC LC Filter 50V 10A Electromagnetic Interference Double Sided FR4 Low Pass Filter for Vehicle

About this item

• Feature: 1. Three Parts: This DC LC filter consists of three parts, the first part is a one stage LC filter circuit, the second part is a common mode EMI filter, and the third part is a two stage LC filter circuit. 2. LC Filter: The LC filter is generally known as passive filter, it is a traditional DC power harmonic compensation device, which can filter out harmonics in the power supply one or more times and purify the DC power supply. 3. Common Mode Filtering: This DC EMI power filter can suppress the problem of fast transient group interference with a repetition frequency of several kilohertz in some user sites. 4. Wide Application: This DC low pass filter is suitable for eliminating the DC power supply with electromagnetic interference, and can be applied to the filtering after the output of the switching power supply. 5. Glass Fiber Board: The circuit board of this LC filtering board adopts double sided FR4 glass fiber board, which ensures stable performance and long service life. Specification: Item Type: DC LC Filter Material: Printed Circuit Board Input: DC Output: DC Voltage: 50V Current: 10A Circuit Board: Double Sided FR4 Glass Fiber Board Electrolytic Capacitor: 50V 470UF, 13mm Diameter, Usage 4Pcs Film Capacitor: 100NF 3Pcs Magnetic Ring Inductance: 2Pcs Usage Common Mode Inductance: 1Pc Usage Socket :7.62 Socket 2pin 2Pcs. Package List: 1 x DC LC Filter
