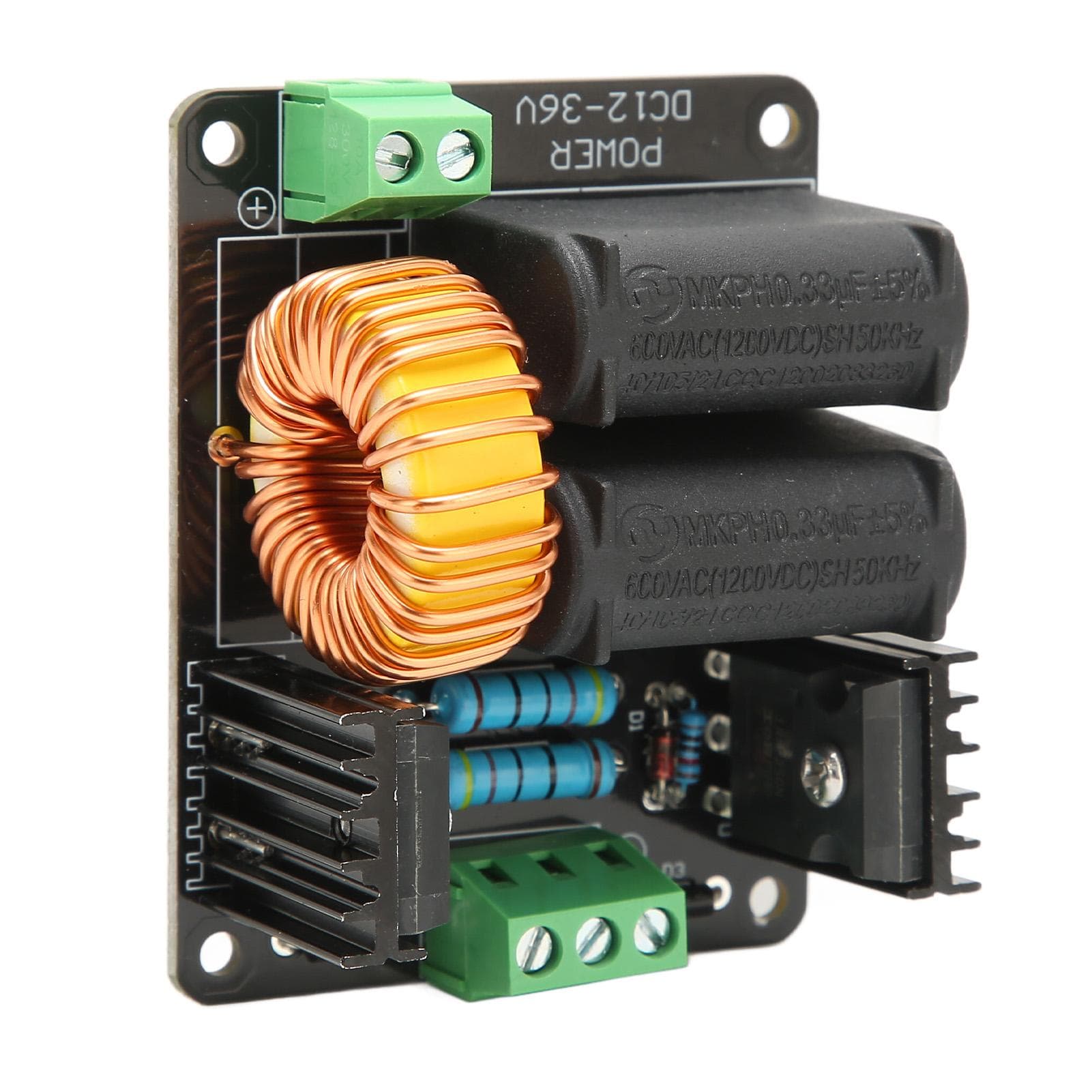

ZVS Module Flyback Driver High Voltage Wireless Transmission Power Supply Module with Coil for DIY

About this item

• Feature: 1. [Input And Output Voltage] The high voltage module supports 12‑36V DC input (24V is recommended) and outputs high voltage DC voltage with an input voltage of about 1000 times. 2. [Input Power] High voltage coil module 12V input can up to 50‑100W power, 24V input can up to 200W or more, so it is better to request the power supply current above 10A. 3. [Professional] ZVS high voltage power module, using flyback drive circuit, used to drive the ignition coil, also referred to as ZVS circuit by the majority of enthusiasts. 4. [Application] ZVS module with high power, low heat generation, simple and reliable, widely used to drive for spark gap coils (for SGTC) and for Jacob ladder, for Marx generators, etc. 5. [Use Current Requirements] Heating power supply module uses 12‑24V DC input and requires a power supply current of not less than 4A at 12V and not less than 8A at 24V. 6. [Power Supply] It can be powered by switching power supply, battery, lithium battery pack, or use high power transformer to rectify and filter by itself, and the filter capacitor is not less than 10000uF. Specification: Item Type: ZVS Module Material: PCB When Input Voltage 12V Output Voltage: 10000V Maximum Power: 100W When Input Voltage 24V Output Voltage: 20000V Maximum Power: 200W. Package List: 1 x ZVS Module
