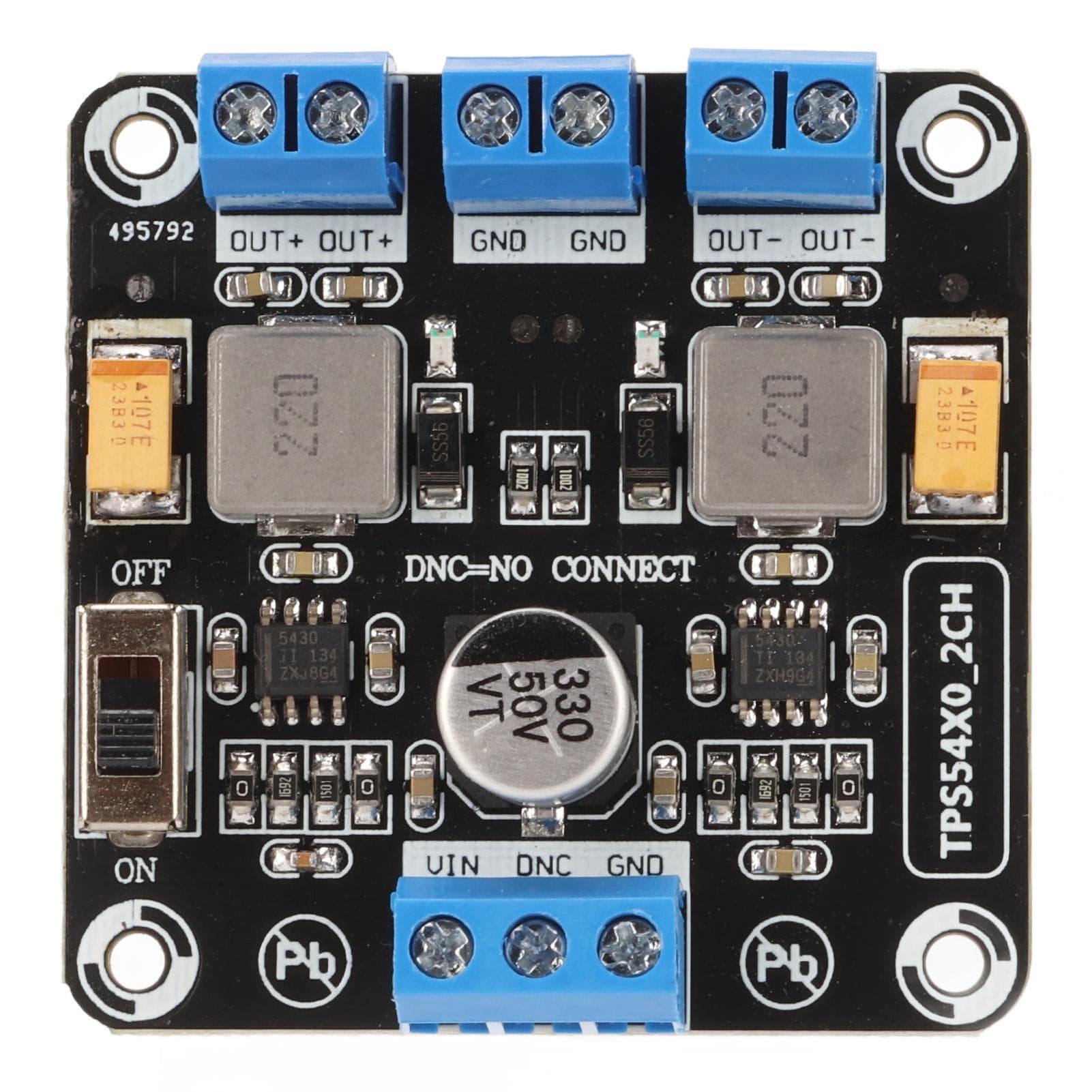

Positive Negative Dual Output Module TPS5430 12V 15V Reverse Connection Protection Low Noise

About this item

• Feature: 1. Input Voltage: Dual power supply modules are buck type, and a certain voltage difference must be ensured between input and output. In actual test, when the input voltage drops below 5.5, the module turns off the output directly. Recommended for use within 30V input 2. Heat Dissipation: The module is shipped without auxiliary heat dissipation. Under the condition of no auxiliary natural heat dissipation, the TPS5430 is recommended to run for a long time within P less than 10W, and the TPS5450 is recommended to run for a long time within P less than 15W 3. Output Voltage: Recommended that users use within +- 5V ~ +- 15V, the conventional voltage including +- 5V, +- 9V, +- 12V and +-15V 4. Practical and Reliable: Dual output power supply module with reverse connection protection, low noise, low ripple; with input and output power supply and indicator, with positioning holes 5. Scope of Application: Positive and negative output modules are suitable for industrial automation control, LED lighting, industrial control equipment, communication equipment, power equipment, instrumentation Specification: Item Type: Positive Negative Dual Output Module Material: PCB Module Model: Multi Circuit Power Supply Module Type: Switching Power Supply Input Voltage: 5V to 40V Output Voltage: Multiple 3.3V, 5V, 12V, ADJ Output Current: 3A (maximum) Module Single Circuit Current Up to 3A, The Total Current Does Not Exceed 5A Conversion Efficiency: 85percent Output Power: 9.9W 3.3V,15W 5V,36W 12V,36W ADJ Static Power Consumption: 26mA Switching Frequency: 150KHz Module Enable: None Module Protection: Reverse Connection Protection Module Features: Low Noise, Low Ripple; with Input and Output Power; Indicator; with Positioning Holes Module Application: Industrial Automation Control, LED Lighting, Industrial Control Equipment, Communication Equipment, Power Equipment, Instrumentation. Package List: 1 x Positive Negative Dual Output Module
