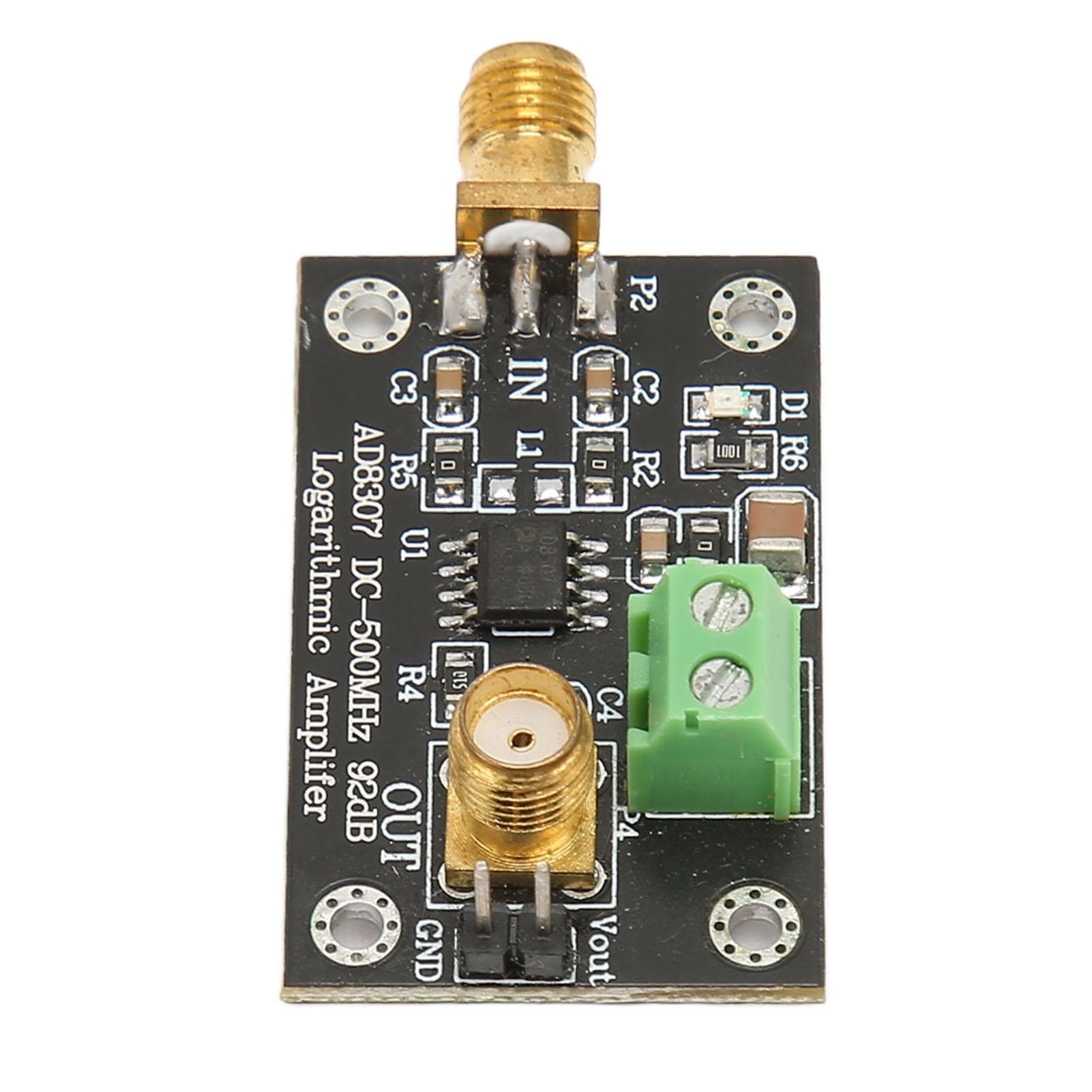

AD8307 RF Power Detector DC 500MHz Antenna Power Transmitter Radio Frequency Power Meter

About this item

• Feature: 1. RF POWER DETECTOR: Radio frequency power meter is compact and lightweight, model: AD8307, input power default range: ‑75 to +15dbm. 2. FEATURES: Logarithmic detector is characterized by small size, low power consumption, high accuracy, high stability and wide dynamic range. 3. STANDARD SMA FEMALE CONNECTOR: RF power logarithmic detector is made of PCB. The RF connector of this RF detector board is a standard SMA female connector. 4. POWER REGULATOR CIRCUIT DESIGN: The power supply regulator circuit is designed so that the detection accuracy tends to the official data, with excellent power supply insensitivity and temperature stability. 5. SCOPE OF APPLICATION: RF logarithmic detector is widely used in RF signal detection, signal power measurement, and environmental field strength detection. Specification: Item Type: RF Power Detector Material: PCB Module Model: AD8307 Module Type: RF Logarithmic Detector Supply Voltage: DC5V Supply Current: 9mA Input Signal Form: Single Ended Input Frequency Range: 20Hz-500MHz Input Impedance: 50 Ohm Module Dynamic Range: 92dB. Package List: 1 x RF Power Detector
